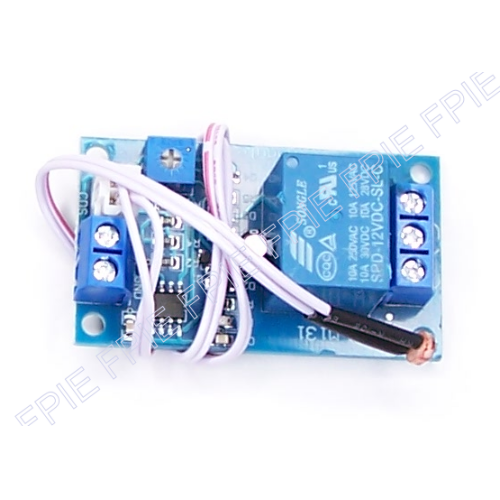

12VDC Light Actuated SPDT Relay Module (800-7209)

12VDC Light Actuated SPDT Relay Module (800-7209).

Description:
Photo-resistor controlled relay module. S.P.D.T. relay switches when light is sufficiently low or high. Cadmium Sulfide (CdS) photo-resistor sensor determines when a relay switches. Sensitivity adjustment potentiometer. Screw-clamp terminals for input and output. Led indicators for power (red) and relay actuation (blue).

Specs:
• XH-M131 module
• 4 x 5mm CdS photocell on 9" leads plugs into board
• SPDT relay, 10A contacts. cULus.
• Input: 12 VDC
• Output: up to 10 Amp 28-30 Vdc / 125-250 VAC
• PC board size: 1.2" x 2.1" x 0.7" H
