Product Overview

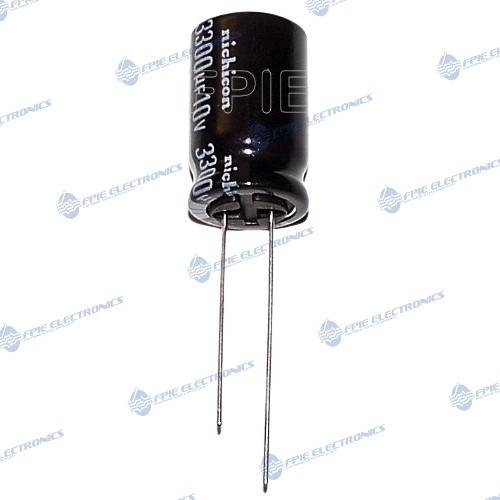

10V, 3300uF Radial VZ Capacitor 12.5x20mm by Nichicon (200-6038).
Similar Parts:
ECA-1AHG332
URZ1A332MHD
Specs:
Manufacturer #: UVZ1A332MHD
Tolerance: ±20%
Diameter: 12.50mm
Series: VZ
Ripple Current (Lo-Freq): 1A @ 120kHz
Ripple Current (Hi-Freq): 1.15A @ 10kHz
Package / Case: Radial
Operating Temperature: -55°C ~ 105°C
Mounting Type: Through Hole
Lifetime @ Temp.: 1000 Hrs. @ 105°C
Leakage Current: 990 uA
Lead Spacing: 5mm
Height - Seated (Max): 20mm
Lead Free
Applications: General Purpose
