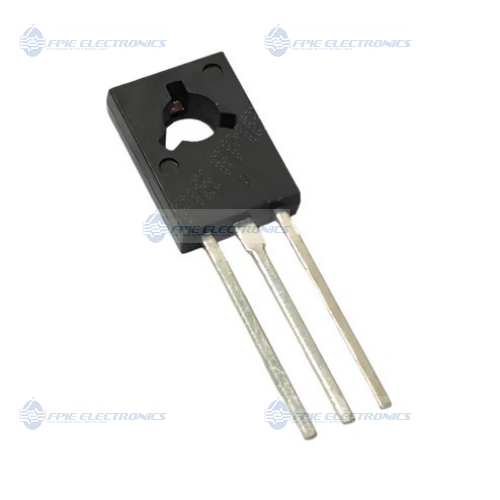

2SD882P D882P NPN Pwr Transistor by Shenzhen Jingdao Electronic.
DESCRIPTION
The 2SD882 is NPN silicon transistor suited for the output stage of 3 watts audio amplifier, voltage regulator, DC-DC converter and relay driver.
Similar Part:
NTE184
PINOUT
1: Emitter
2: Collector: connected to mounting plane
3: Base
FEATURES
• Low saturation voltage
VCE(sat) = 0.5 V MAX. (IC = −2 A, IB = 0.2 A)
• Excellent hFE linearity and high hFE hFE = 60 to 400 (VCE = 2 V, IC = 1 A)
• Less cramping space required due to small and thin package and reducing the trouble for attachment to a radiator.
No insulator bushing required.
ABSOLUTE MAXIMUM RATINGS
Maximum Temperature
Storage Temperature −55 to +150°C
Junction Temperature 150°C
Maximum Maximum Power Dissipations
Total Power Dissipation (TA = 25°C) 1.0 W
Total Power Dissipation (TC = 25°C) 10 W
Maximum Voltages and Currents (TA = 25°C)
VCBOCollector to Base Voltage 40 V
VCEOCollector to Emitter Voltage 30 V
VEBOEmitter to Base Voltage 5.0 V
IC(DC)Collector Current (DC) 3.0 A
IC(pulse) Collector Current (pulse) 7.0 A
Note Pulse Test PW ≤ 350 μs, Duty Cycle ≤ 2%
