Product Overview

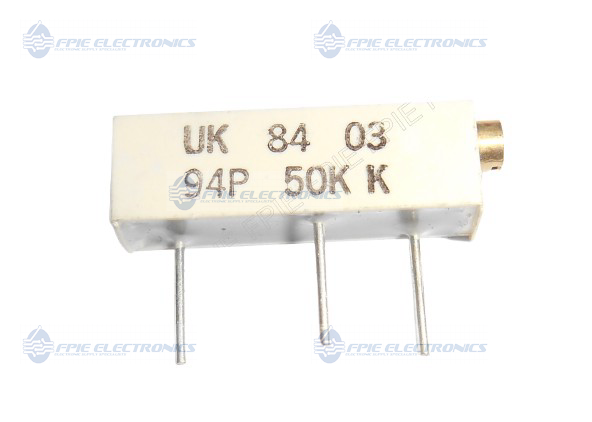

50k Ohm Linear Cermet Trimmer Pot by Allen Bradley (94P503).
Specs:
Component Type: Precision Multiturn Trimming Potentiometer
Resistance Code: 503
Resistance Taper: Linear
Resistance Tolerance: ±10%
Power Rating: 0.75 Watts at 70°C (Derates to 0W at 125°C)
Number of Turns: 20-Turn Nominal (Rotational Adjust)
Adjustment Type: Side Adjust (Lead Screw)
Lead Finish: Tin-Lead (Sn/Pb) Plated (Non-RoHS)
Element Material: Cermet (Metal Glaze)
Operating Temperature Range: -55°C to +125°C
Package Footprint: 3/4" Rectangular Body (approx. 0.75" L x 0.25" H x 0.19" W)
