Product Overview

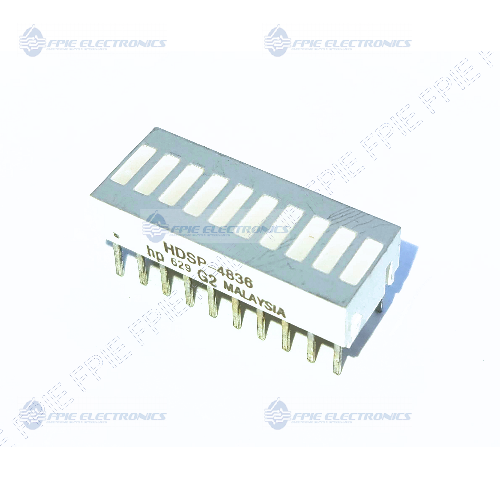

HDSP-4836 Triple Color 10-Element Led Array by Hewlett Packard.
Specs/Features:
Color At Wavelength: Green/Red/Yellow
Configuration: Separated, 10-Elements
Maximum Forward Current: 0.03 A
Maximum Forward Voltage: 2.5 V
Nominal Luminous Intensity (mcd): 3.5/1.9/1.9
Mounting Feature: Radial Mount
No. of Functions: 10
No. of LEDs in Array: 10
No. of Terminals: 20
Maximum Operating Temperature: 85 Cel
Minimum Operating Temperature: -40 Cel
Height: 5.08 mm
Terminal Pitch: 2.54 mm
Warning:
This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov
