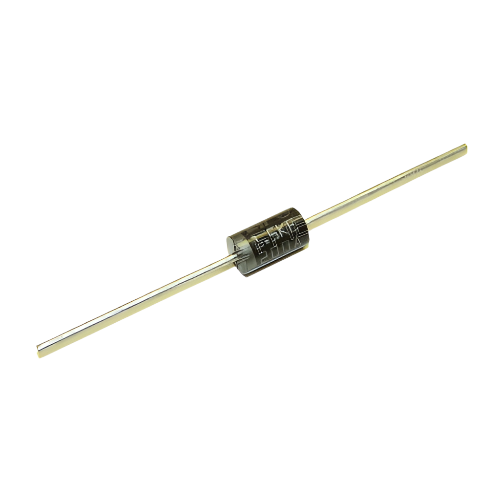

1.5KE200A TVS Silicon Transient Suppressor by STMicroelectronics

1.5KE200A TVS Silicon Transient Suppressor by STMicroelectronics.

Similar Part:
NTE4988

Features:
Surge Clamping
DO-201 Package
TVS Diode
Transient Overvoltage Suppressor Unidirectional
Type = Zener
Voltage - Reverse Standoff (Typ) = 171V
Voltage - Breakdown (Min) = 190V
Voltage - Clamping (Max) @ Ipp = 353V
Current - Peak Pulse (10/1000µs) = 28A (8/20µs)
Power - Peak Pulse = 1500W (1.5kW)
Power Line Protection = No
Capacitance @ Frequency = 675pF @ 1MHz
