Panasonic

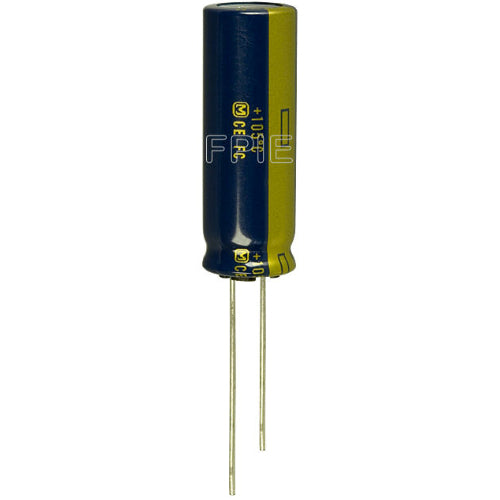

25V, 2200uF Radial FC Capacitor 12.5x35mm by Panasonic (200-5434)
25V, 2200uF Radial FC Capacitor 12.5x35mm by Panasonic (200-5434)
Regular price
$1.85 USD
Regular price
Sale price
$1.85 USD
Unit price
/
per
Shipping calculated at checkout.
Quantity Available: 21
Couldn't load pickup availability
25V, 2200uF Radial FC Capacitor 12.5x35mm by Panasonic (200-5434).
Specs:
Manufacturer: EEU-FC1E222
Tolerance: ±20%
Dimension: 12.5mm
Series: FC
Ripple Current (Lo-Freq): 2.008A @ 120Hz
Ripple Current (Hi-Freq): 2.51A @ 100kHz
Package / Case: Radial, Can
Operating Temperature: -55°C ~ 105°C
Mounting Type: Through Hole
Lifetime at Temperature: 5000 Hrs. at 105°C
Lead Spacing: 5mm
Lead Free
Impedance: 22 mOhm
Height - Seated (Max): 35mm
Applications: Automotive
