NEC

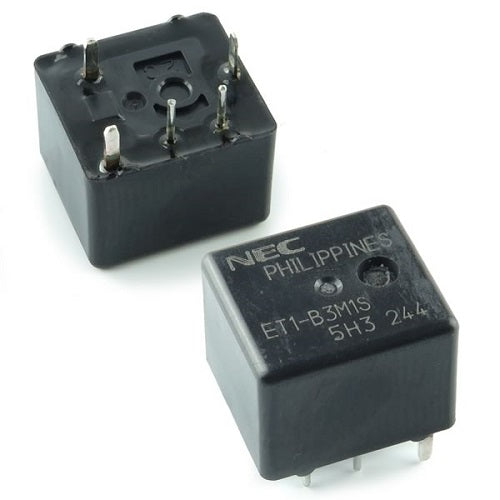

ET1-B3M1S SPDT Automotive Relay by NEC

ET1-B3M1S SPDT Automotive Relay by NEC

Regular price $2.50 USD
Regular price Sale price $2.50 USD
Sale Sold out
Shipping calculated at checkout.

Quantity Available: 5

ET1-B3M1S SPDT Automotive Relay by NEC.

Applications:
- Motor control
- Heater control
- Solenoid control

Coil Ratings:
- Nominal Voltage: 12.0V
- Coil resistance: 225 Ohm
- Must Operate Voltage: 6.5V
- Must Release Voltage: 0.9V

Contact Rating:
- Max. Switching Voltage: 16.0V
- Max. Switching Current @ 16V: 25.0A
- Max. Switching Current @ 5V: 1.0A
- Nominal Operate Power: 640mW
- Insulation Resistance: 100 megohm @ 500V

Warning:
This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov
