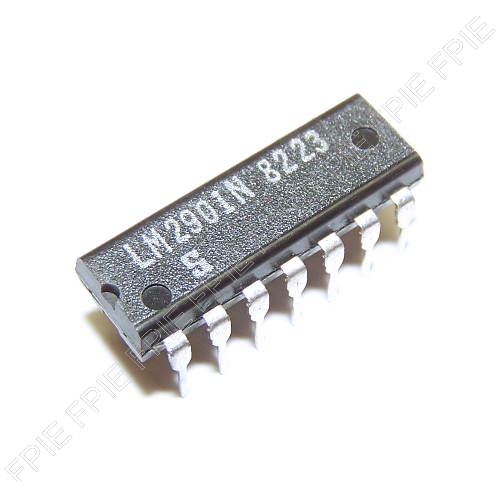

LM2901N Quad Differential Comparator 14-DIP by Signetics

LM2901N Quad Differential Comparator 14-DIP by Signetics.

Similar Part:
NTE834

Specs:
Lead Free
Operating Temperature: -40°C ~ 125°C
Elements: 4
Output Type: CMOS, MOS, Open-Collector, TTL
Voltage - Supply, Single/Dual (±): 2 V ~ 30 V, ±1 V ~ 15 V
Voltage - Input Offset (Max): 7mV at 30V
Current - Input Bias (Max): 0.25µA at 5V
Current - Output (Typ): 20mA
Current - Quiescent (Max): 2.5mA

Warning:
This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov
