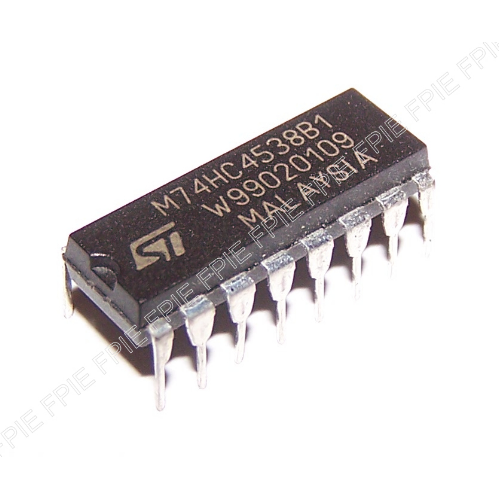

M74HC4538B1 Dual Monostable Multivibrator by STMicroelectronics

M74HC4538B1 Dual Monostable Multivibrator by STMicroelectronics.

Specs:
High speed:
* tPD = 25 ns (TYP.) at VCC = 6V

Low power dissipation:
* Stand by state:
* ICC=4μA (MAX.) at TA=25°C Active state:
* ICC=200μA (TYP.) at VCC = 6V

High noise immunity:
VNIH = VNIL = 28 % VCC (MIN.)

Symmetrical output impedance:
* |IOH| = IOL = 4mA (MIN)

Balanced propagation delays:
* tPLH≅ tPHL

Wide operating voltage range:
* VCC (OPR) = 2V to 6V

Wide output pulse width range:
* tWOUT = 120 ns ~ 60 s Over at VCC = 4.5 V
* Pin and function compatible with 74 Series 4538
