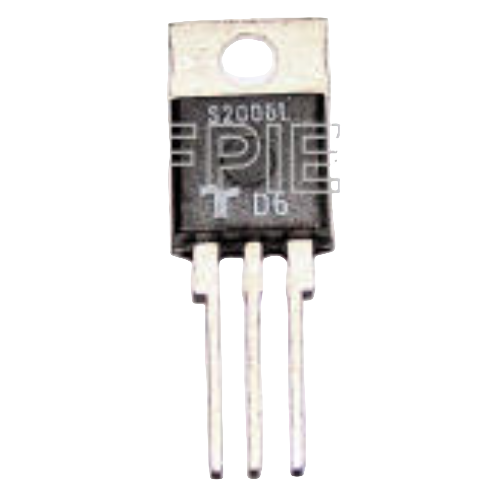

S2006L SCR Non-Sensitive Gate 6A, 200V by Teccor Electronics, Inc.

S2006L SCR Non-Sensitive Gate 6A, 200V by Teccor Electronics, Inc.

Similar Part:
NTE5417

Specs:
SCR Type: Standard Recovery
Voltage - Off State: 200V
Voltage - Gate Trigger (Vgt) (Max): 1.5V
Voltage - On State (Vtm) (Max)    : 1.6V
Current - On State (It (AV)) (Max): 3.8A
Current - On State (It (RMS)) (Max): 6A
Current - Gate Trigger (Igt) (Max): 15mA
Current - Hold (Ih) (Max): 30mA
Current - Off State (Max): 10µA
Current - Non Rep. Surge 50, 60Hz (Itsm): 83A, 100A
Operating Temperature: -40°C ~ 125°C
Mounting Type: Through Hole
